Geotextile Making Machine Supports Needle Punching Production in Engineering Applications

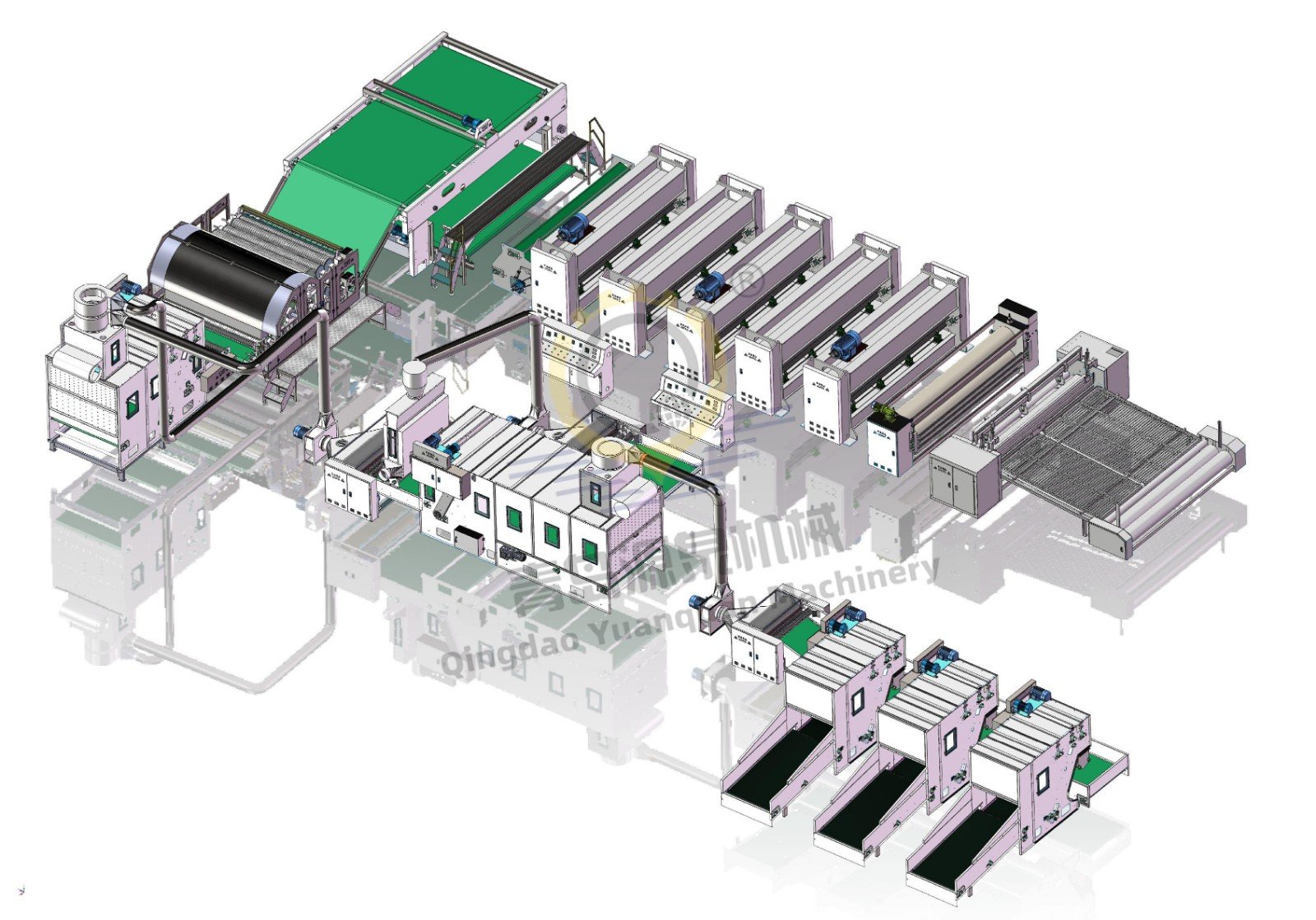

Geotextile making machine technology continues to support the production of nonwoven materials used in engineering applications such as roads, water conservancy, environmental protection, and construction. The Non Woven Needle Punching Geotextile Production Line converts fiber raw materials into functional geotextiles that are used for reinforcement, protection, anti-seepage, and isolation.

By forming a stable fiber structure, these materials help improve the performance and durability of engineering systems.

Production Principle of Needle Punching Geotextiles

Geotextile making machine systems in this production line apply a needle punching process to bond fibers. In this process, fibers such as sheep wool, polyester fiber, or other chemical fibers are first arranged into a web structure. The web is then mechanically reinforced through repeated needle penetration.

This process creates a three-dimensional fiber entanglement structure. Compared with other bonding methods, needle punching does not rely on chemical adhesives and maintains the original properties of the fibers. The resulting material shows stable structure and permeability, which are required in engineering applications.

Production Parameters and Process Control

Geotextile production line performance is defined by several key parameters that influence output and product characteristics:

• Line speed: 1–8 m/min

• Web weight: 80–600 gsm

• Finished thickness: 5–10 mm

• Maximum working width: 2500 mm or customized

• Maximum finished width after cutting: 2600 mm or customized

• Voltage: 380V (3-phase, 50Hz)

• Capacity: approximately 100–600 kg/h

These parameters allow the production line to adjust to different project requirements while maintaining consistent output.

Application Functions in Engineering Fields

Geotextile materials produced by geotextile making machine are widely used due to their functional roles in engineering systems:

• Reinforcement: improving soil stability in road construction

• Separation: preventing mixing of different soil layers

• Filtration: allowing water flow while retaining soil particles

• Protection: reducing damage to structural layers

• Anti-seepage and isolation: supporting environmental and hydraulic engineering

These functions contribute to extending the service life of infrastructure.

Adaptability of the Production Line

Geotextile making machine systems in this production line are compatible with different fiber materials, including natural and synthetic fibers. The ability to process recycled or alternative fibers provides flexibility for manufacturers.

The production line can also be customized in working width and configuration, allowing it to meet different industrial requirements.

Geotextile making machine technology, combined with needle punching production lines, provides a practical method for manufacturing geotextile materials used in engineering projects. With stable processing parameters and flexible raw material options, this type of production line continues to support the development of nonwoven materials in infrastructure applications.
