Understanding Through-Air Technology: The Role of Thermal Bonding Machines in Hard Wadding Production

The Thermal bonding machine is a pivotal technical unit in the nonwoven industry, facilitating the transformation of loose fibers into structured, high-performance materials. By employing advanced through-air bonding mechanisms, this production line processes bicomponent fibers (ES fibers) to create hard wadding characterized by superior resilience, high porosity, and zero chemical adhesives. With a thickness capability of 10–200 mm and a density range of 400–3000 gsm, this technology has become the industrial standard for mattress filling, filtration media, and acoustic insulation worldwide.

MATERIAL SCIENCE: SHEATH-CORE MELTING AND POINT-BONDING MECHANISMS

Thermal bonding machine efficiency is fundamentally linked to the utilization of ES fibers (e.g., PE/PET or PE/PP). These bicomponent composite fibers feature a sheath with a low melting point (typically 125°C–135°C for PE) and a core with a significantly higher melting point (PET or PP).

As heated air penetrates the fiber web, the oven’s controlled environment softens only the sheath component. This results in "point-like bonding" (mutual welding) at the fiber intersections rather than solid block-like bonding. This specific process ensures that the core component maintains its physical stability and structural integrity while the sheath melts, allowing the line to achieve a high capacity of 150–600 kg/h while preserving large void spaces for excellent breathability and bulkiness.

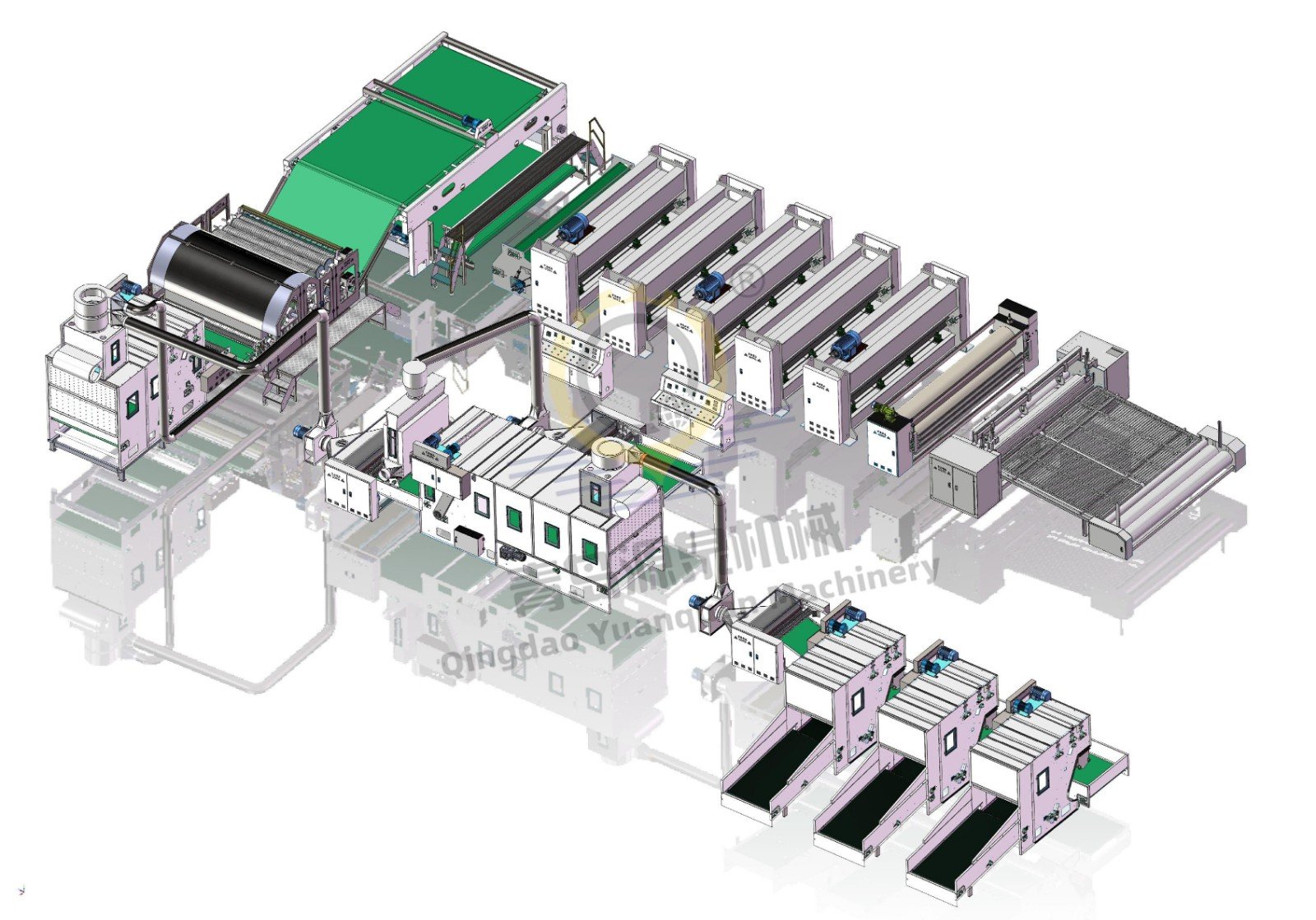

PRODUCTION WORKFLOW: FROM PRECISION CARDING TO AUTOMATED CONSOLIDATION

The nonwoven thermal bonding process involves a series of integrated stages designed to meet rigorous industrial specifications:

• Opening and Blending: Fibers of different fineness (0.8D–3.0D) are blended. Fine denier fibers provide surface softness, while coarse deniers build the acquisition/distribution framework.

• Carding and Web Forming: Using high-speed carding elements like cylinders and doffers, fiber bundles are separated into individual fibers and laid into a uniform web, ensuring density consistency between 400 and 3000 gsm.

• Through-Air Thermal Consolidation: The web enters a flat-bed oven where air is heated and sprayed directly through the material. Multi-stage heating and drying zones ensure consistent bonding strength across the entire web.

• Post-Processing: The consolidated material passes through a calender to remove surface fuzz and cooling rollers to stabilize the molecular structure before being wound into finished rolls with a maximum width of 2400 mm.

VERSATILE APPLICATIONS: SERVING HIGH-END FURNISHING AND INDUSTRIAL SECTORS

The output of the hard wadding production line is highly valued for its stability and non-toxic properties. In home furnishing, it serves as the essential core for premium mattresses, seat cushions, and traditional Japanese-style tatami mats, providing superior air permeability.

Industrial filtration and acoustic engineering represent other major growth sectors for this technology. Leveraging the thermal bonding machine’s ability to process coarse fibers, the line produces effective air filter media and architectural sound-absorbing panels. As global demand for recyclable and eco-friendly manufacturing grows, this production line—capable of processing recycled synthetic and chemical fibers—remains a critical asset for infrastructure durability and sustainable production.
