Advancing Loft Technology: The Role of Soft Wadding Machines in Thermal and Filtration Media

The Soft wadding machine is a cornerstone of the modern nonwoven industry, specifically engineered to produce high-loft, high-resilience fibrous materials. This production line utilizes advanced thermal processing to transform 1D–25D chemical fibers and low-melt fibers into multi-layered soft wadding. With a finished thickness of 50–80 mm and superior compression recovery, this technology has become the primary choice for producing apparel insulation, greenhouse quilts, and primary air filtration media.

TECHNICAL CORE: CARDING AND THERMAL FUSION OF MULTI-DENIER FIBERS

The high performance of the soft wadding machine stems from its ability to process a wide range of fiber deniers (1D to 25D). By meticulously blending different fibers, the equipment achieves an ideal balance between tactile softness and structural support. During processing, low-melting-point fibers act as "physical binders," softening under heat to lock fiber intersections into a stable 3D matrix.

Energy-saving engineering is a hallmark of this specific line. By optimizing the air circulation system, the machine significantly reduces energy consumption while maintaining a high output capacity of 150–600 kg/h. This controlled thermal process ensures that webs with a surface density of 250–300 gsm are heated uniformly, preventing any structural inconsistencies between the surface and the core.

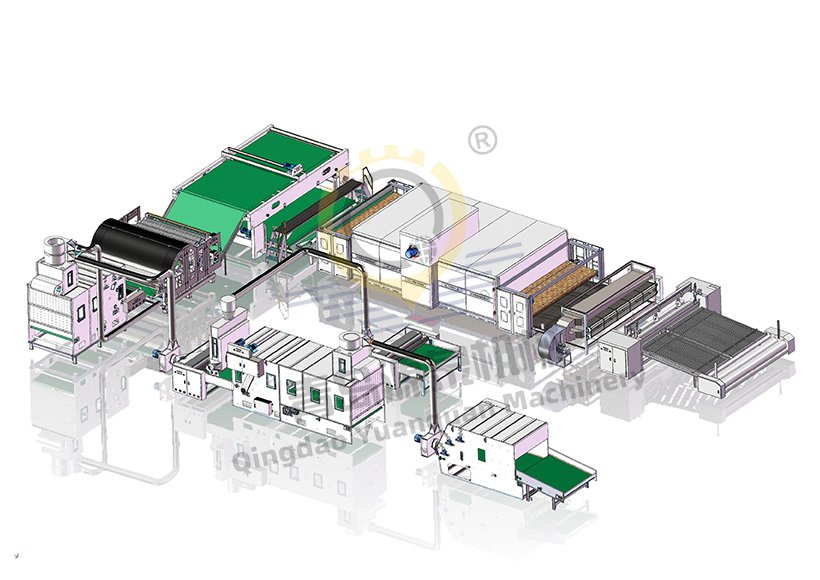

PRODUCTION WORKFLOW: FROM AUTOMATED OPENING TO 3800MM WINDING

The soft wadding manufacturing process is a highly synchronized sequence designed to maximize bulkiness without damaging the fiber integrity:

• Automated Opening and Blending: Depending on requirements, the line can be configured with bale opening or specialized mixing types to fully decompose fiber clumps into a homogeneous blend.

• Web Forming: After carding, fibers are layered at a line speed of 3–15 m/min to construct a continuous web that meets specific thickness requirements.

• Thermal Consolidation: The web enters the high-efficiency oven powered by a 380V 3-phase system. Heated air penetrates the internal structure of the web, a critical step that determines both the bulkiness and the thermal resistance (CLO value) of the product.

• Slitting and Winding: Supporting a maximum finished product width of 3800 mm (customizable), the line efficiently produces large-scale materials for greenhouse insulation or automotive windshield quilts.

VERSATILE APPLICATIONS: FROM APPAREL FILLING TO INDUSTRIAL FILTRATION

Materials produced by the soft wadding machine excel in both thermodynamic and fluid dynamic applications. In apparel and quilt manufacturing, the vast layers of stagnant air trapped within the fibers provide excellent thermal insulation. For electric vehicle accessories and greenhouse insulation, the material's weather resistance and lightweight nature make it the preferred substrate.

Primary air filtration represents another significant application. By adjusting fiber fineness, the soft wadding machine creates a fiber matrix capable of intercepting large dust particles while maintaining low air resistance, making it an essential component for air purification systems and sound-absorbing products.
